Core Advantage
● High compatibility.
● High speed charging.
● Equipped Type A+6ma DC.
● A smart LED indicator shows the charging status in real time.
● Full link temperature control system.

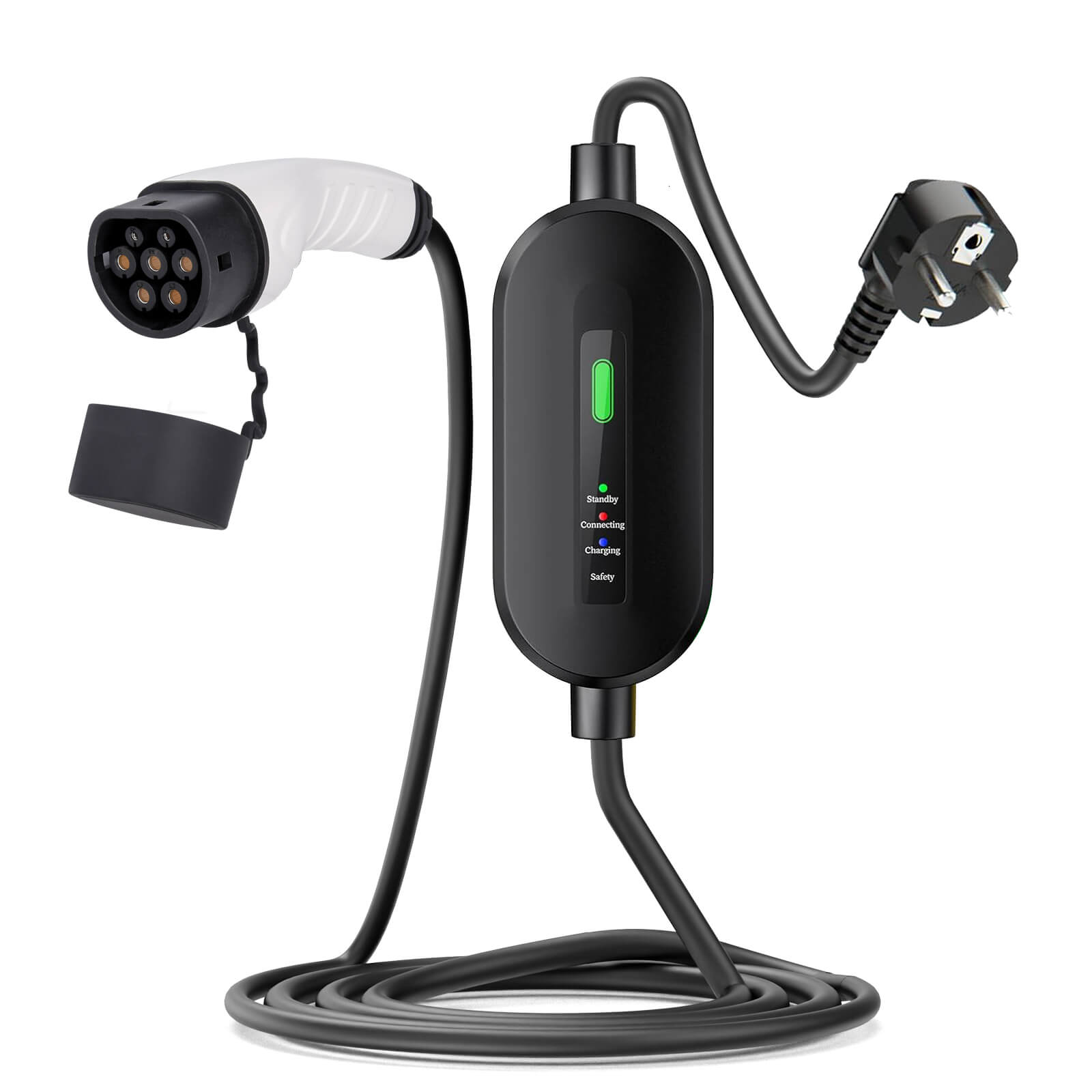

EV Plug
● Integrated design.
● Long working Life.
● Good conductivity.
Box body
● LED Light.
● Higher waterproof performance.
● IP55, rolling-resistance system.
TPE/TPU cable
● Comfortable to touch.
● Durable and preservative.
● EU standard ,Halogon-free.
● High and cold temperature resistance.
Cautions

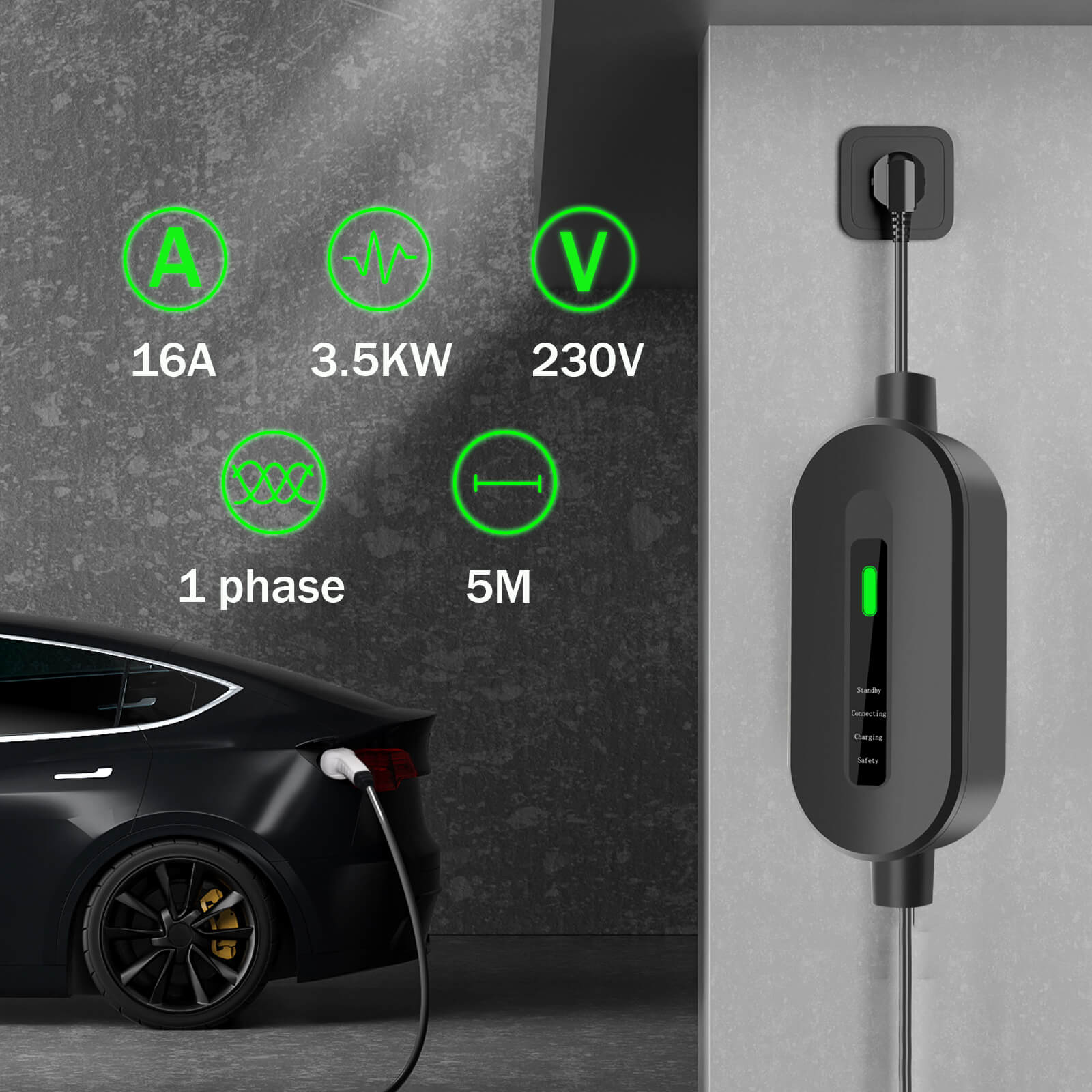

Type 2 Charging Cable (Schuko) combines oxygen-free copper wires and silver plated contacts for optimal conductivity. With 16 A/3.5 kW (230 V), it charges efficiently, reduces resistance and extends the service life - for faster, more stable charging with maximum energy efficiency.

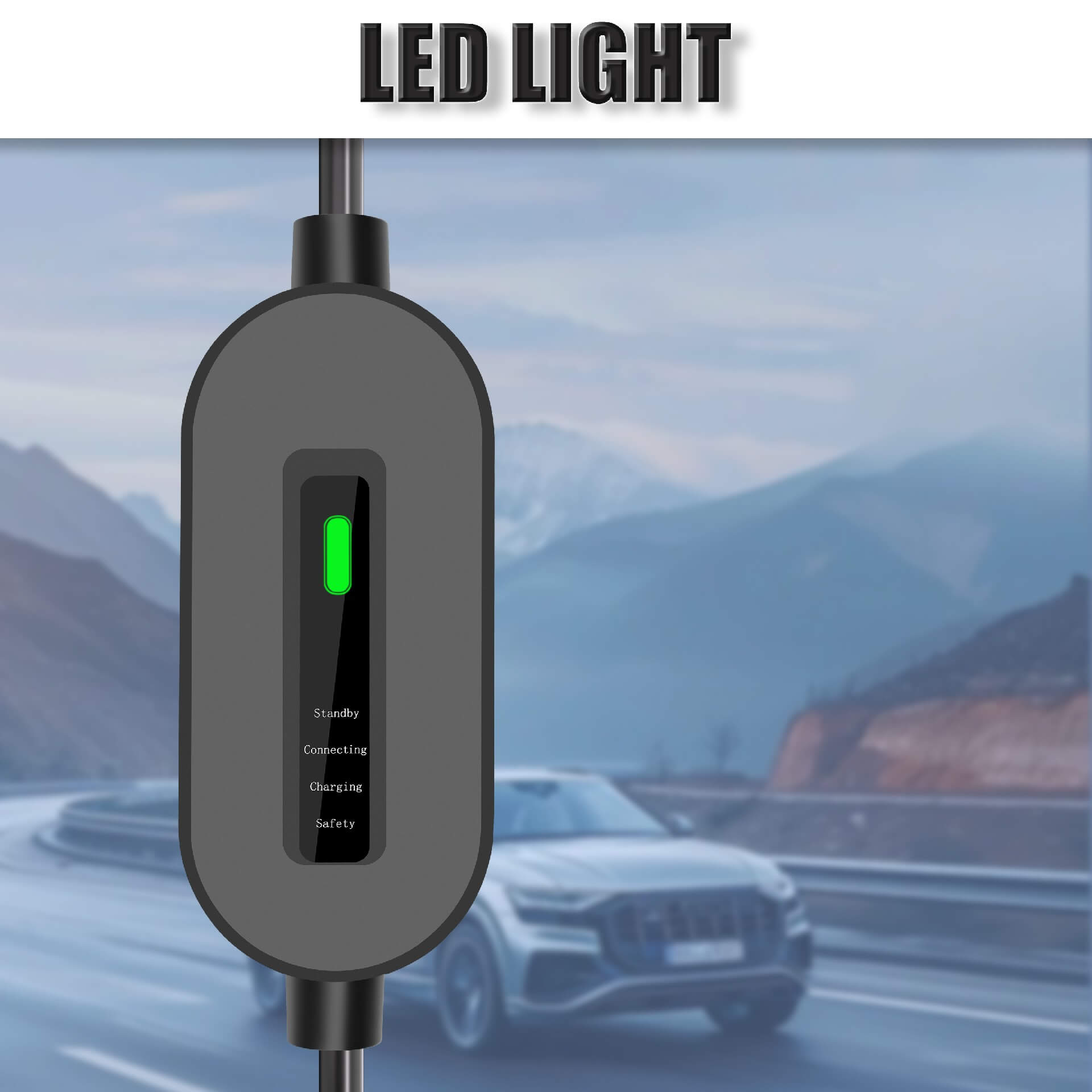

Plug & Charge A smart LED indicator shows the charging status in real time. When the type 2 charger is connected to the power source, the green LED lights up permanently. When connected to the electric vehicle, the yellow LED lights up constantly. The blue LED flashes during charging. When the blue LED lights up permanently, the battery is fully charged. A flashing red light indicates an error
EXCELLENT CABLE The TPU cable has passed 20,000 bending tests, the type 2 female connector has passed 15,000 plug-in tests, and easily supports a service life of 5 years. The operating temperature is -30°C to 50°C. The cable remains flexible in cold winter. I am not afraid of being exposed to the scorching sun in summer. Premium cables are abrasion and tangle resistant. Ideal for frequent and long-term use
Electrical Specification
| Input Voltage | 230V AC |
| Output voltage | 230V AC |
| Max. output Current | 16A |
| Max. output Power | 3.5kW |
| Input Frequency | 50Hz |
| Charging interface type | IEC 62196-2, SAE J1772 |
Working Environment
| Waterproof Protection Degree | IP55 |
| Maximum Altitude | <2000m |
| Environment Temperature | -25℃ ~ +50℃ |
| Relative Humidity | 0-95% non-condensing |
| Standby Power Consumption | <3W |
| Cooling | Natural air cooling |
Function and Accessory
| Ethernet/WIFI/4G/Bluetooth | No |
| LED | LED dLight |
| RCD | Type A+6mA DC |
| LED Indicator light | Yes |
| Intelligent power adjustmen | No |
| RFID | No |
Customer Service
● We can provide customers with professional product advice and purchase options.
● All emails will be responded within 12 hours during working days.
● All customers will get one-on-one service.
Customized Service
● We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
● OEM includes color, length, logo, packaging, etc.
● ODM includes product appearance design, function setting, new product development, etc.
● MOQ is depend on different customized requests.
After-sale Service
● The warranty of all our products is one year.
● The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
